Multiple Choice
Identify the
choice that best completes the statement or answers the question.
|
|
|
1.
|
Which of the following are known as the “linking cells” of the human
brain?
A. | Neurons. | B. | Protons. | C. | Neutrons. | D. | Electrons |
|
|
|
2.
|
Which of the binary numbers below is equal to 6 in the decimal system of
notation?
|
|
|
3.
|
Technician A says in computer language a 0 or 1 is called a bit.
Technician B says in computer language a 0 or 1 is called a byte. Who is right?
A. | A only. | B. | B only. | C. | Both A and
B. | D. | Neither A nor B. |
|
|
|
4.
|
To comply with the Clean Air Act of 1977, “self-adjusting” engines
were introduced in _____.
|
|
|
5.
|
In which type of logic gate must both inputs be “on” to produce an
output voltage?
|
|
|
6.
|
Which of the following is not a type of computer memory?
A. | ROM. | B. | RAM. | C. | PROM. | D. | PRAM. |
|
|
|
7.
|
Which of the following is another name for an automotive computer?
A. | Electronic Control Unit. | B. | Electronic Control Module. | C. | Electronic Control
Assembly. | D. | All of the above. |
|
|
|
8.
|
Technician A says both inputs of an AND gate must be one (1) to produce
an output. Technician B says both inputs of an AND gate must be zero (0) to produce an
output. Who is right?
A. | A only. | B. | B only. | C. | Both A and
B. | D. | Neither A nor B. |
|
|
|
9.
|
Most automotive computer systems use a signal amplitude of about _____
volts.
|
|
|
10.
|
Which type of computer memory loses its contents if power is interrupted?
A. | EPROM. | B. | RAM. | C. | ROM. | D. | KAM. |
|
True/False
Indicate whether the
statement is true or false.
|
|
|
11.
|
The interaction between the different computers in a vehicle's computer
network is referred to as multiplexing.
|
|
|
12.
|
The three stages of computer operation are input, programming, and
output.
|
|
|
13.
|
In the binary system, 1 designates off and 0 designates on.
|
|
|
14.
|
Automotive computers can be located in the passenger or engine compartment, in
the trunk, or under the seats.
|
|
|
15.
|
An active sensor is one that generates its own voltage signal.
|
|
|
16.
|
The term microprocessor means small computer.
|
|
|
17.
|
Wheel speed sensors provide necessary information for the anti-lock braking
system.
|
|
|
18.
|
Beginning with the 2011 model year, diagnostic systems in all new vehicles were
required to be CAN-compliant.
|
|
|
19.
|
A solenoid is an actuator that reacts to a small control signal from the
computer to control a much higher current flow to large components or systems.
|
Matching
|
|
|
Match the following terms and identifying phrases. A. | Ignition module. | B. | Climate control module. | C. | Instrumentation
module. | D. | HV Power control module. | E. | Powertrain control module. | F. | Vehicle control
module. |
|
|
|
20.
|
Alters current and routes it between the battery pack and
motor-generator.
|
|
|
21.
|
Large, powerful computer that coordinates functions such as engine,
transmission, and traction control.
|
|
|
22.
|
Uses sensor inputs to control ignition timing and spark plug firing.
|
|
|
23.
|
Small computer that uses sensor inputs to operate a digital dash
display.
|
|
|
24.
|
Controls operation of the heating, ventilation, and air conditioning
systems.
|
|
|
25.
|
Powerful computer used to control and monitor the engine and
transmission.
|
|
|

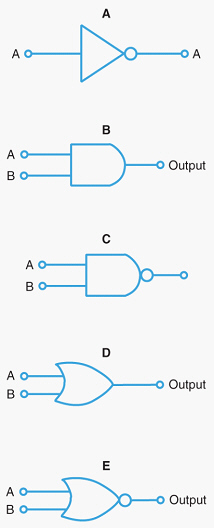

Match the following computer gate symbols with their names.
|
|
|
26.
|
AND gate
|
|
|
27.
|
OR gate
|
|
|
28.
|
NOT gate
|
|
|
29.
|
NOR gate
|
|
|
30.
|
NAND gate
|
|
|

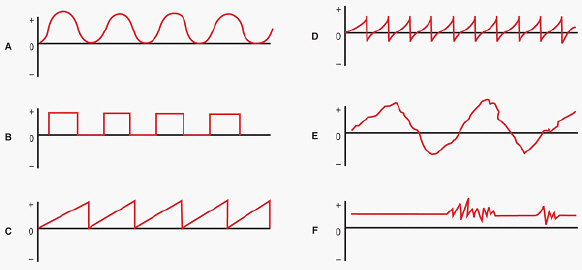

Match each of the following waveforms with their names.
|
|
|
31.
|
DC ramp wave
|
|
|
32.
|
DC square wave
|
|
|
33.
|
DC with noise
|
|
|
34.
|
DC sine wave
|
|
|
35.
|
Complex sine wave
|
|
|

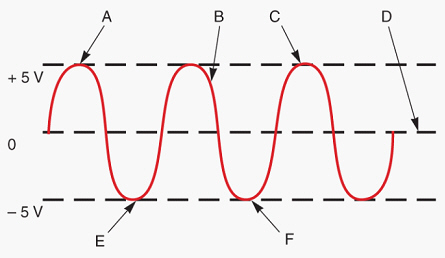

Identify each of the parts of the analog signal shown.
|
|
|
36.
|
Peak top
|
|
|
37.
|
Negative AC voltage
|
|
|
38.
|
Valley bottom
|
|
|
39.
|
AC voltage off
|
|
|
40.
|
Slope
|
